Summary:
This article is intended to showcase nTop’s new notebook capabilities. Notebook descriptions and comments now support Markdown syntax and embedded images.Applies to:
- Notebook descriptions/comments
- Markdown
- Images
Markdown Capabilities:

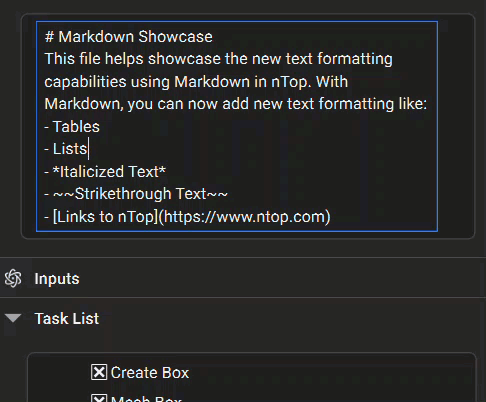

nTop notebook descriptions and comments now accept Markdown syntax for formatting and organizing text. As you enter information into the description/comment, you can use the syntax symbols to modify the text. Once you click outside of the text box, the text will format itself accordingly based on your input syntax. The gif below shows how the text changes from syntax to correct formatting.
| Markdown Element | Syntax | Shortcut |
|---|---|---|
| Heading | # H1 ## H2 ### H3 | |
| Italic | *italicized text* | Ctrl+I |
| Bold | **bold text** | Ctrl+B |
| Strikethrough | ~~strikethrough text~~ | Ctrl+Alt+S |
| Underline | _underlined text_ | Ctrl+U |
| Subscript | Normal text ~s~u~b~s~c~r~i~p~t~ | Ctrl+Shift+S |
| Superscript | mm^2, m^3 | Ctrl+S |
| Code | `code` | |
| Link | [title](https://www.ntop.com) | Ctrl+L |
| Ordered List | 1. First 2. Second 3. Third | |
| Unordered List | - First - Second - Third | |
| Task List | - [x] First Task - [ ] Second Task - [ ] Third Task | |
| Table | | Item List | Description | | ----------- | ----------- | | Item 1 | Text | | |
| Horizontal Line | --- |
Image Capabilities:
Along with Markdown, we’ve added support for images and GIFs within comments and notebook descriptions. Images are stored internally in their original format, including their original size. They are automatically scaled according to the width of the notebook in which they are visible and cannot be manually scaled. The supported formats are .png, .jpg, .jpeg, .bmp, .gif, and .svg. To insert an image, use one of the following methods:- Right-click and select Insert Image
- Paste a copied image
- Drag and drop a local file
