Question:

How can I tell the size of a Voronoi cell?

​
Applies to:

  • nTop 3.44.4

​
Answer:

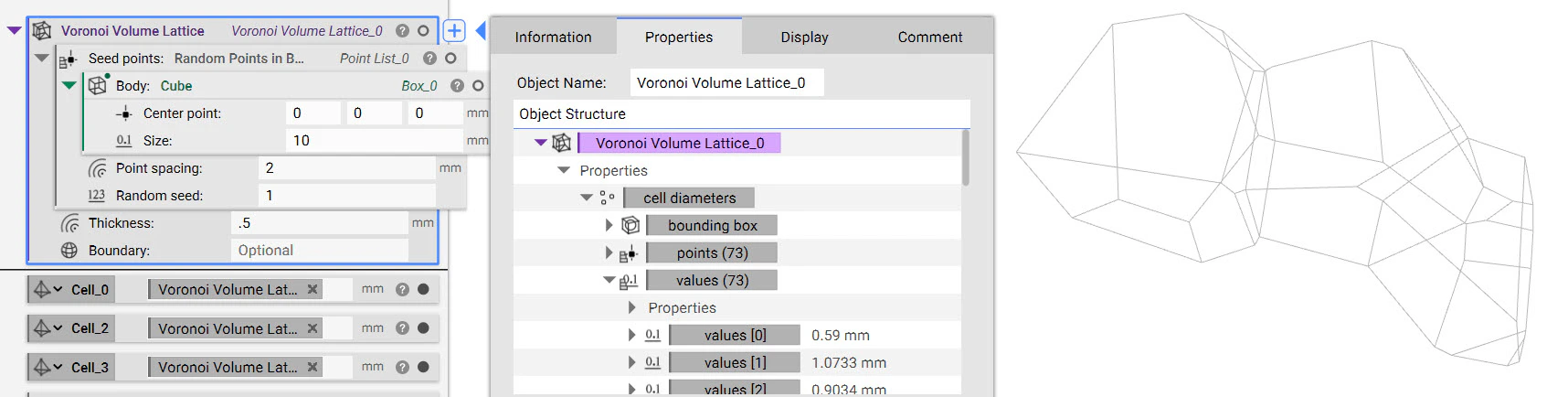

To determine the size of only the full Voronoi cells: Use the Voronoi Volume Lattice block properties to determine the cell size of each full Voronoi cell. Open up Properties > cell diameters > values to see the value of each cell size. Individual Voronoi cells to view their individual sizes. The cell sizes are found in the properties panel of the voronoi lattice To determine the size of all the Voronoi cells: Use the Lattice Pore Size (beta) block. You can see the values in Properties > values. The pore diameters can also be visualized as a scalar point map. Press the Learn More button in the block info to see more tips and an example featuring this block. Results of the Lattice Pore Size block to view the size of each cell

​
