Question:

What types of graph lattices are available when I use a graph lattice unit cell?

​
Answer:

NameImage

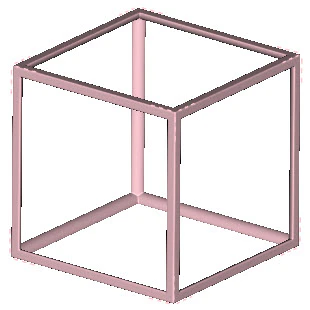

Simple cubicSimple Cubic Unit Cell

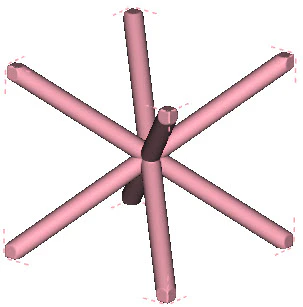

Body-centered cubicBody-Centered Cubic unit cell
Face centered cubicFace Centered Cubic unit cell

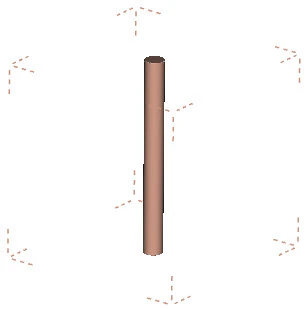

ColumnColumn unit cell

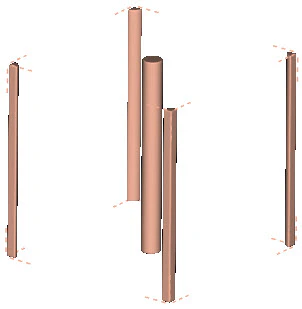

ColumnsColumns unit cell
DiamondDiamond unit cell
FluoriteFluorite unit cell
OctetOctet unit cell

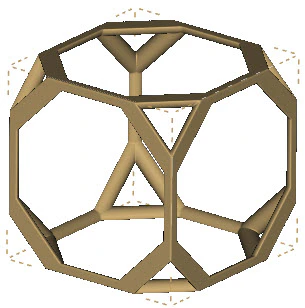

Truncated cubeTruncated Cube unit cell

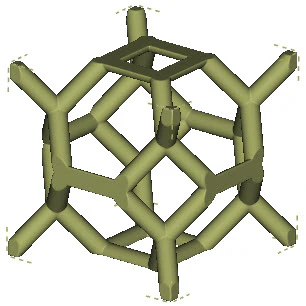

Truncated OctahedronTruncated Octahedron unit cell

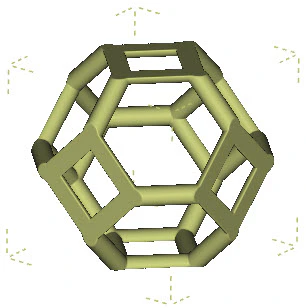

Kelvin cellKelvin cell unit cell

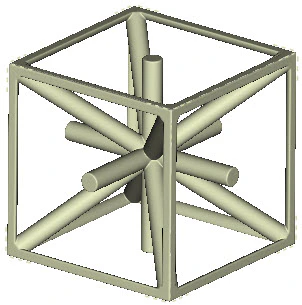

IsotrussIsotruss unit cell

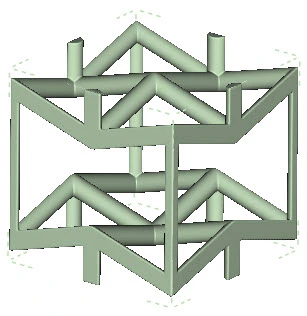

Re-entrantRe-Entrant unit cell

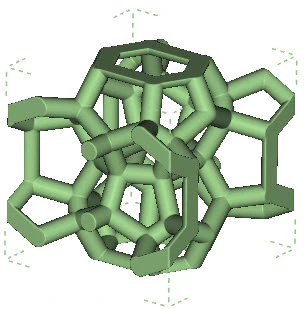

Weaire-PhelanWeaire-Phelan unit cell

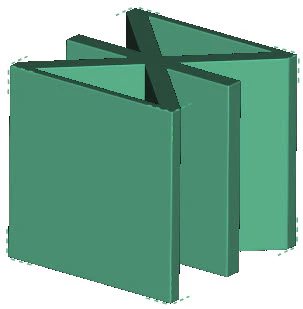

Triangular HoneycombTriangular Honeycomb unit cell
Triangular Honeycomb RotatedTriangular Honeycomb Rotated unit cell

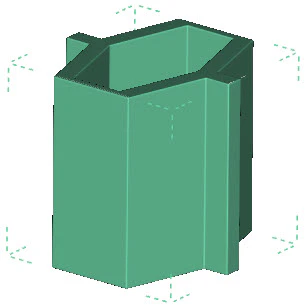

Hexagonal HoneycombHexagonal Honeycomb unit cell

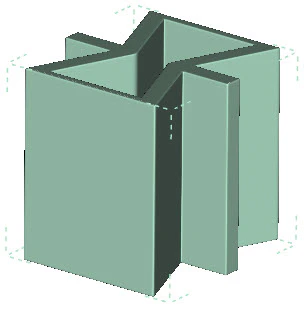

Re-entrant HoneycombRe-Entrant Honeycomb unit cell

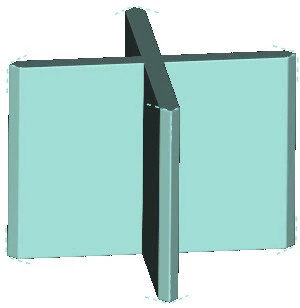

Square HoneycombSquare Honeycomb unit cell
Square Honeycomb RotatedSquare Honeycomb Rotated unit cell
Face-Centered Cubic FoamFace-Centered Cubic Foam unit cell

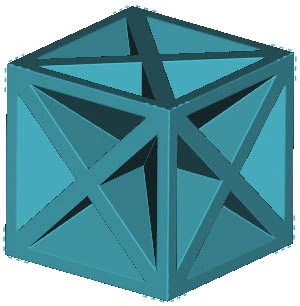

Body-Centered Cubic FoamBody Centered Cubic Foam unit cell

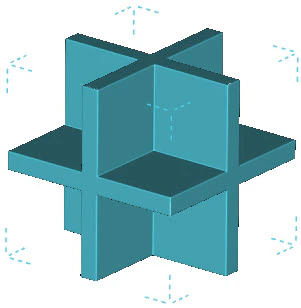

Simple Cubic FoamSimple Cubic Foam unit cell

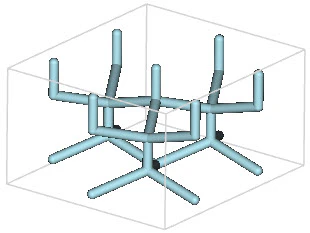

Hex Prism DiamondHex Prism Diamond unit cell

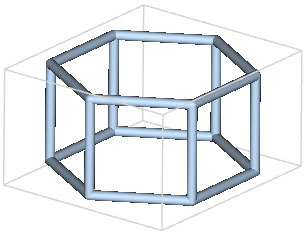

Hex Prism EdgeHex Prism Edge unit cell

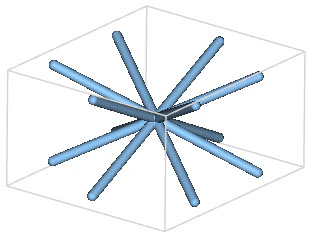

Hex Prism Vertex CentroidHex Prism Vertex Centroid unit cell
Hex Prism Central Axis EdgeHex Prism Central Axis Edge unit cell

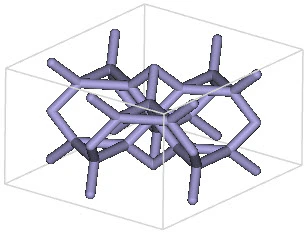

Hex Prism Laves PhasesHex Prism Laves Phases unit cell

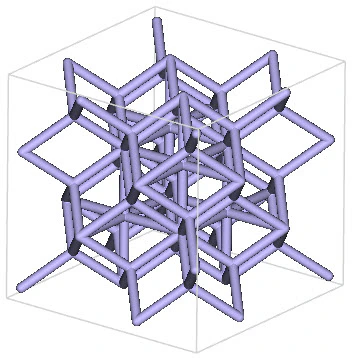

Tet Oct Vertex CentroidTet Oct Vertex Centroid unit cell

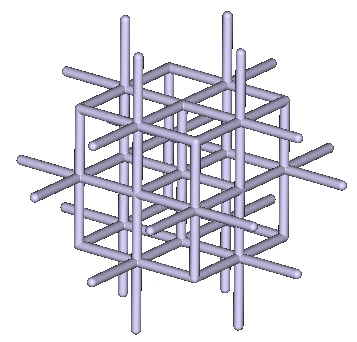

Oct Vertex CentroidOct Vertex Centroid unit cell

​
