Question:
Why does thickening my part create rounded edges? Can I thicken my part without rounded edges?Applies to:
- nTop
- Thicken Body
- Offset Body
Answer:

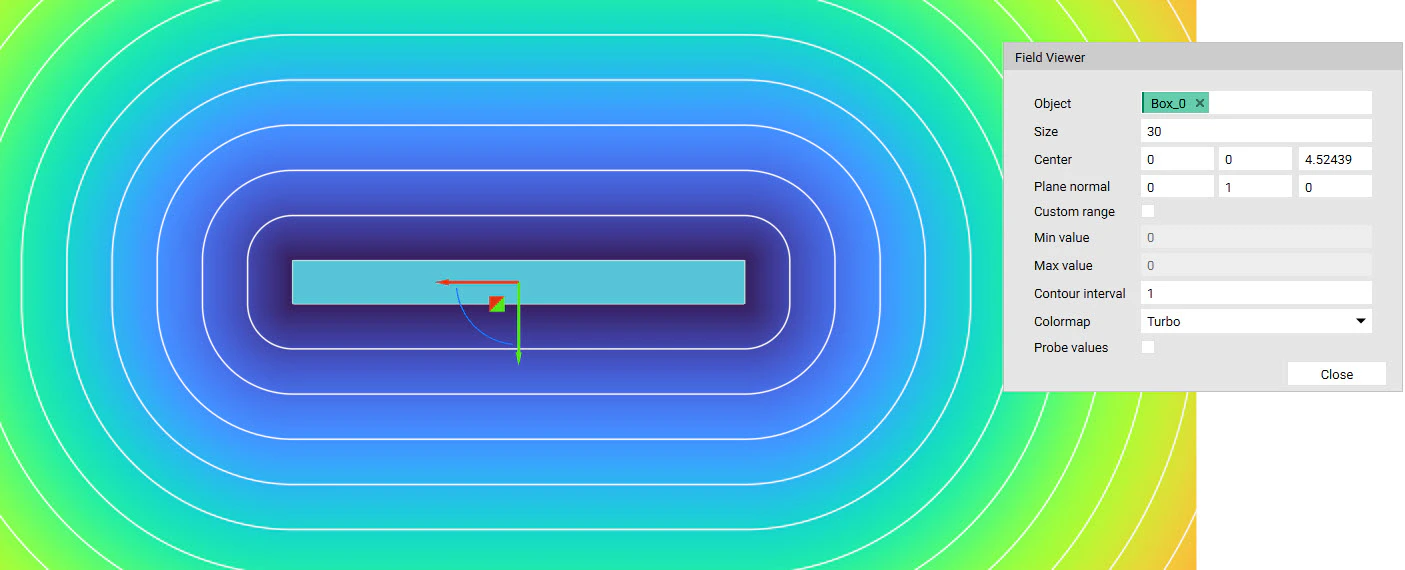

You cannot thicken your part without having rounded edges. This occurs because Implicits are made from Fields. When the implicit body is thickened, it follows the contours in its field. The image below shows a Box with contour lines on its field.
