Question:
How are the loads distributed for bearing force?Applies to:
- Bearing Force
Answer:

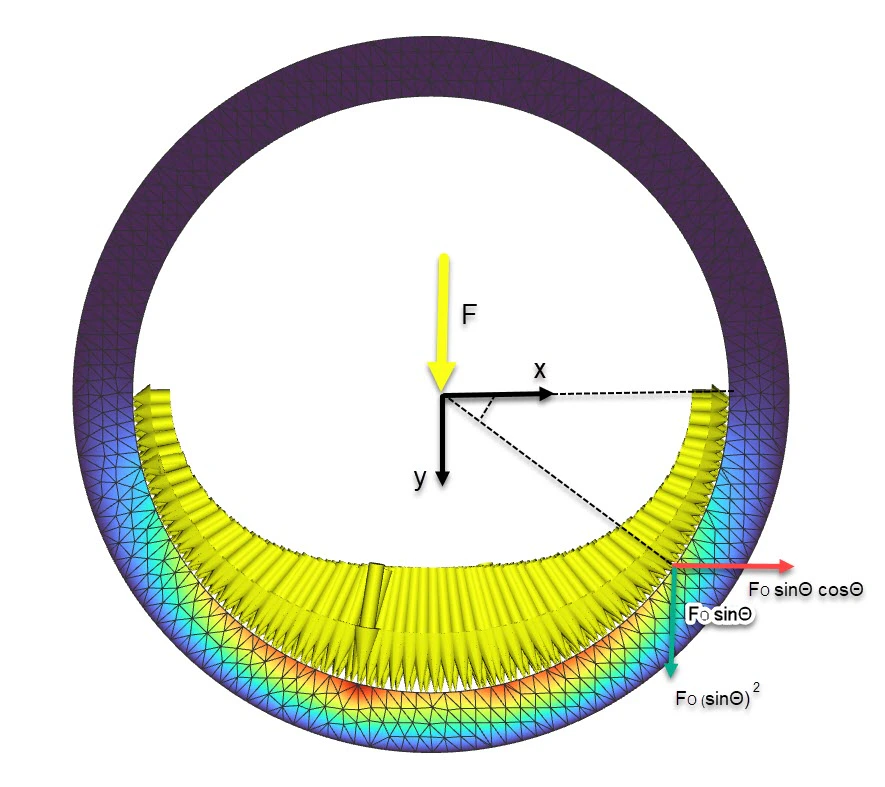

Bearing Force uses the sinusoidal distribution method. The sum of all the forces applied on each face equals the magnitude of the defined force vector. So the force application is radial, which is approximately normal to a mesh of a cylinder.
