Objective:

Learn how to select boundaries using the FE Boundary by Body and Virtual Boundary by Body blocks.

Applies to:

FE Boundary by Body

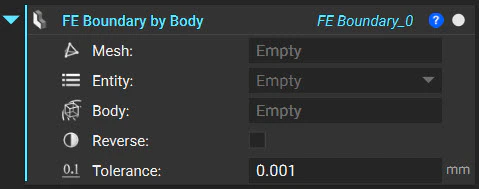

The FE Boundary by Body block selects entities of an FE Mesh (faces, edges, nodes) within the desired tolerance of an Implicit Body. Depending on the Tolerance, the Implicit Body can be intersected with the mesh or not touching. The Reverse box can be toggled on or off to select the opposite of what was selected.  The FE Boundary by Body block
  1. Choose and Prepare the Body for Selection: In this example, we want a Force Boundary Condition to act on the brake pedal’s head. To choose that area on the mesh, we need to extract the CAD face (select CAD Face and right-click), convert it to an Implicit Body, and Thicken the body. Thickening the body turns the thin implicit face into an object that can be rendered and used to select entities on the mesh.

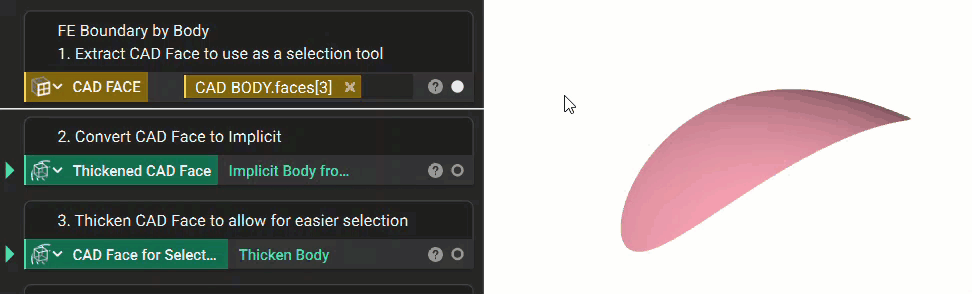

 A gif showing the nTop notebook and an imported CAD face. The CAD Face is converted to an implicit body using the Implicit Body from CAD Body block. The implicit model is thickened using the Thicken Body block.
  1. Select Boundary: Once the selection body is prepared, it needs to be intersected with the FE Mesh to choose the boundary. Follow the steps below to do this:
  • Add an FE Boundary by Body block.
  • Double-click on the Mesh input to add the existing FE Mesh
  • Choose ‘Nodes’ for the Entity
  • Insert the Thickened Body from the last step into the Body input
  • Tip: The Body input takes in Implicit parts that don’t have to be a thickened surface. There are a variety of other methods available to select the part you want. An example of useful blocks, but not limited to:
  • Implicit Body from Curve
  • Implicit Body from Thick Lattice
  • Implicit Body from Mesh
 A gif showing the ntop notebook and a brake pedal model. The gif is demonstrating how to use the FE Boundary by Body block, and how changing the inputs affects the results.

Virtual Boundary by Body

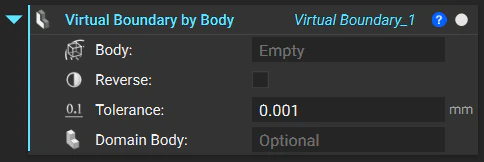

The Virtual Boundary by Body block identifies an Implicit Body to intersect with a Domain to select a boundary. The tolerance applies to checking the boundary of the Implicit Body. The Reverse box can be toggled on or off to select the opposite of what was selected. The Domain Body input is optional and will be used for future capabilities of nTop Fluids.  The Virtual Boundary by Body block
  1. Select Boundary: The Virtual Boundary by Body block only requires you to select a body input.
  • Add a Plane from Normal block and position it at the center of the intake surface. Ensure the normal direction is directed towards the body.
  • Add a Virtual Boundary by Body block. Insert the plane into the Body input.

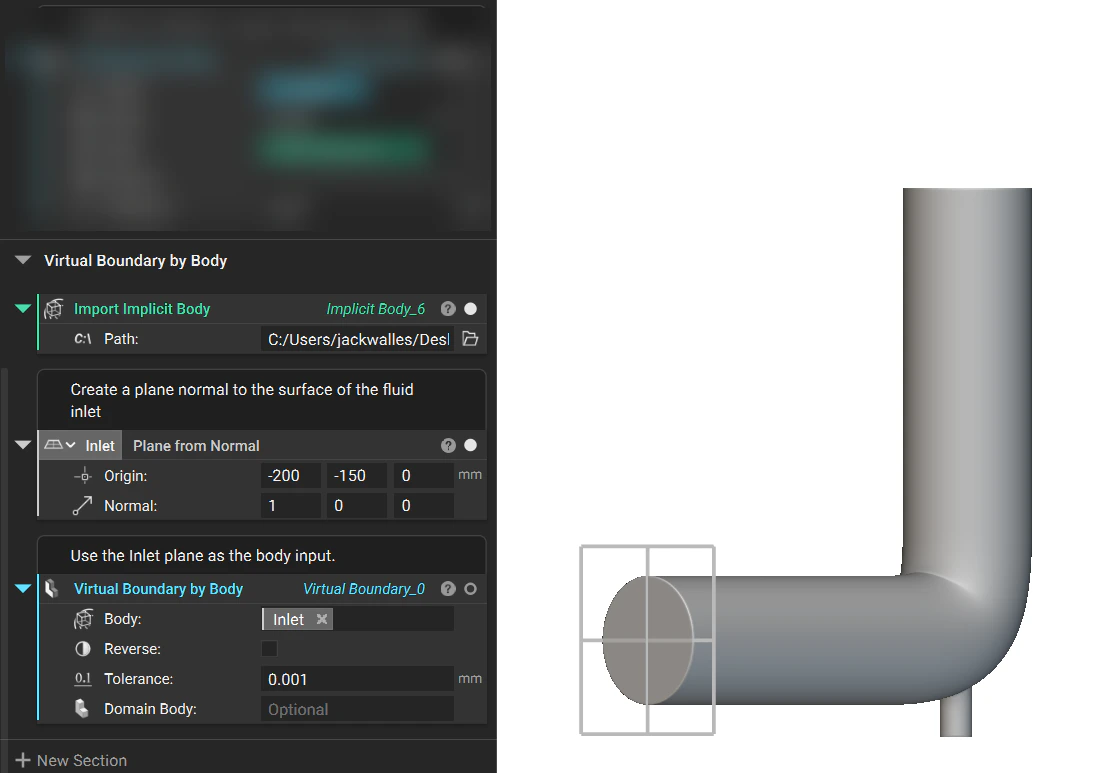

 An image showing the nTop notebook and a pipe model. The pipe model is imported using the Import Implicit Body block. There is a plane on the surface of the pipe inlet that is created from the Plane from Normal block. There is a Virtual Boundary by Body block that is being used to define the Inlet boundary using the plane. And that’s it! You’ve successfully selected a boundary using the FE Boundary by Body and Virtual Boundary by Body blocks. Are you still having issues? Contact the support team, and we’ll be happy to help! Move on to the next article in this series and learn how to use FE Boundary by Flood Fill.

Download the Example file:

More on this topic:
