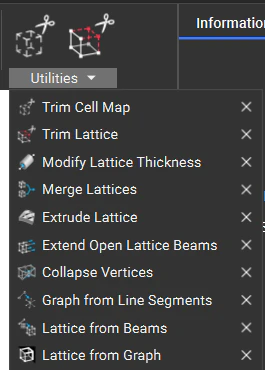

You can use Lattice Utilities to modify lattices after creation. These blocks are in the Utilities dropdown of the Lattices tab in the Ribbon. Lattice Utilities blocks output a lattice type containing lattice properties.` See the options below, and watch how to apply them in the next lesson.

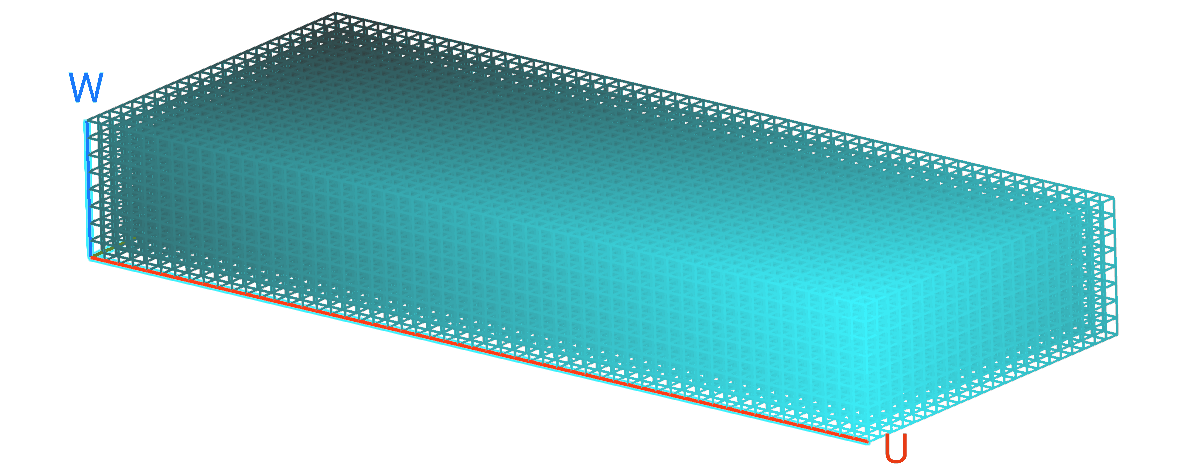

Trim a cell map with an implicit body.

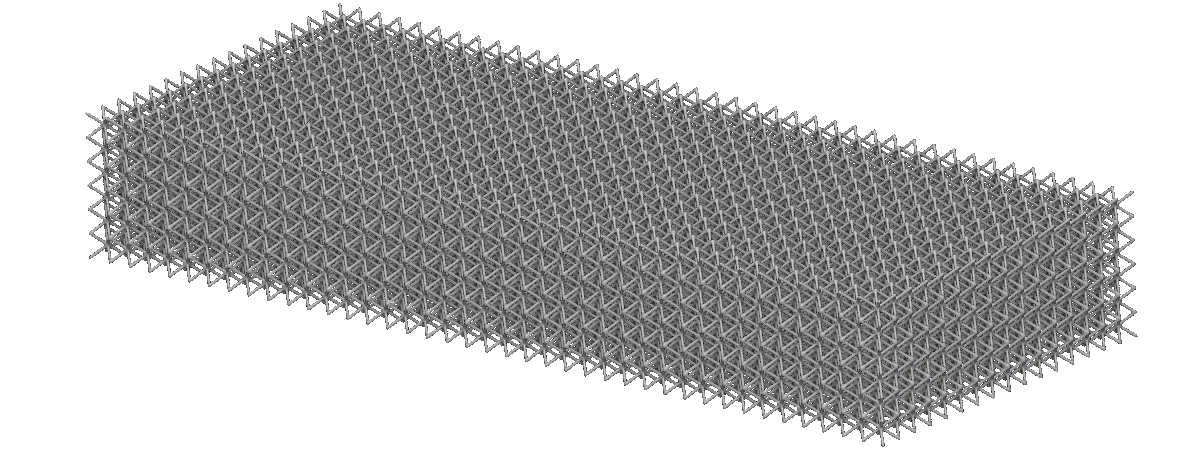

Trim a lattice with an implicit body.

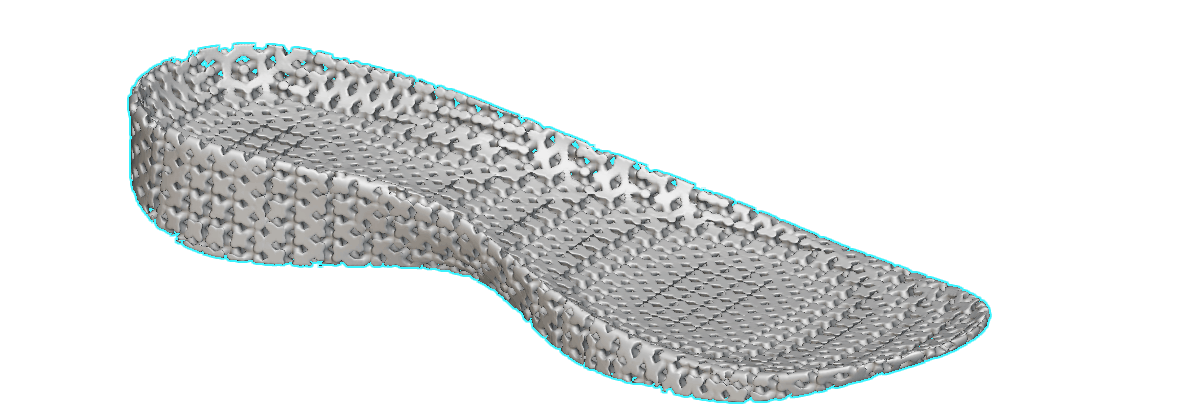

Adjust the thickness of a lattice.
Merge a list of two or more lattices.

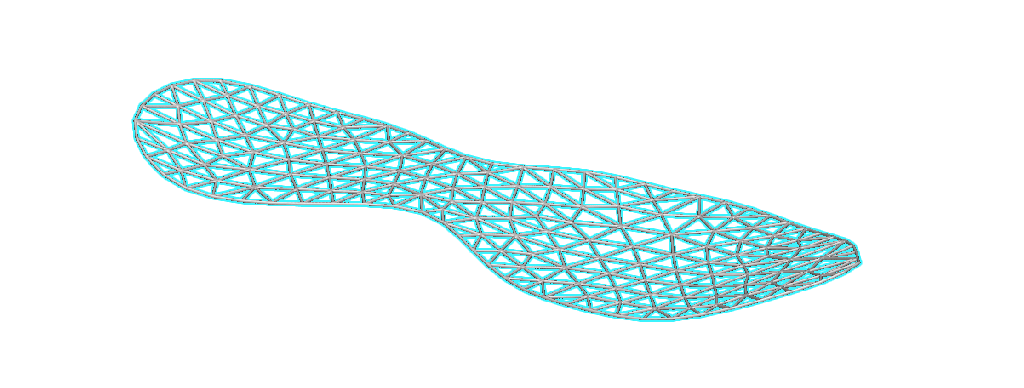

Create directional ribs from the beams of a lattice.
Extend open beams within a lattice.

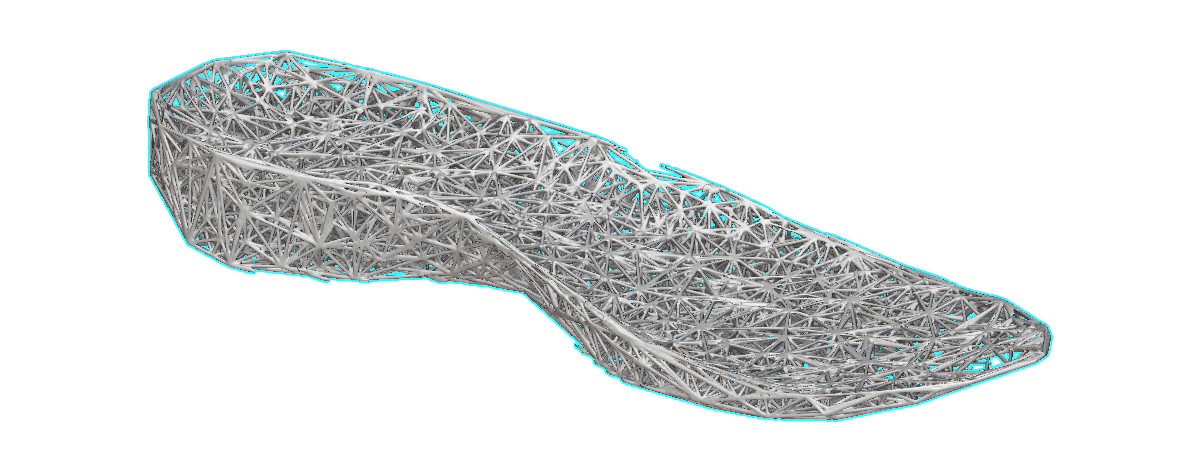

Merge and collapse vertices of a lattice within a specified distance threshold.
