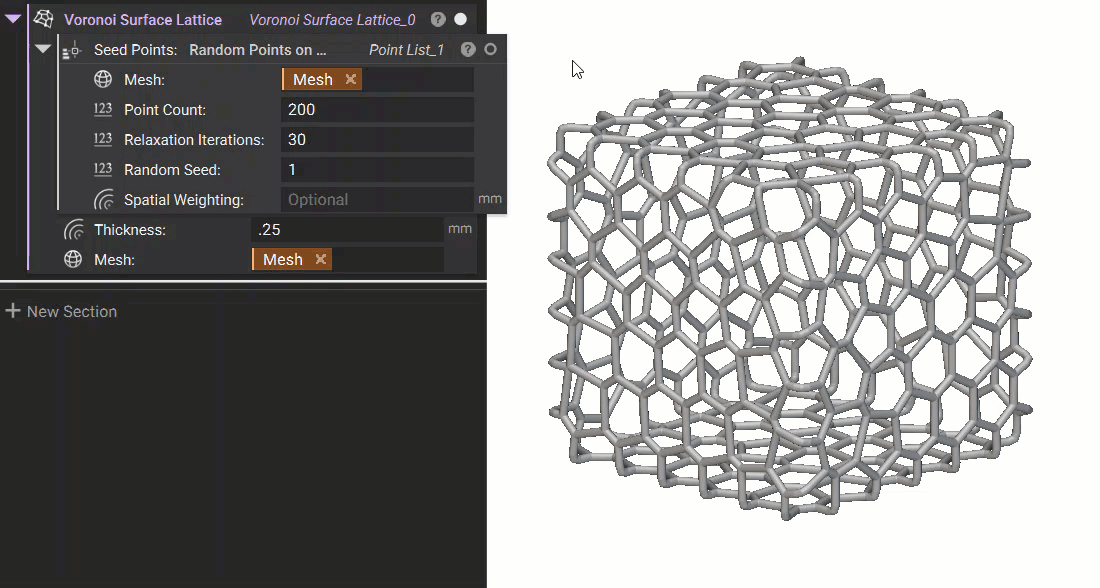

The Voronoi Surface Lattice block creates a lattice from the Voronoi diagram of a list of points restricted to the surface boundary of a body.

Surface Voronoi Properties

Along with the properties found with a lattice, the Voronoi Surface Lattice has one additional property: voronoi surface patches. This contains a list of meshes split by the Voronoi structure. You can use these surface patches with an Implicit Body from Mesh block and a Thicken Body block to fill in regions of the lattice structure.
