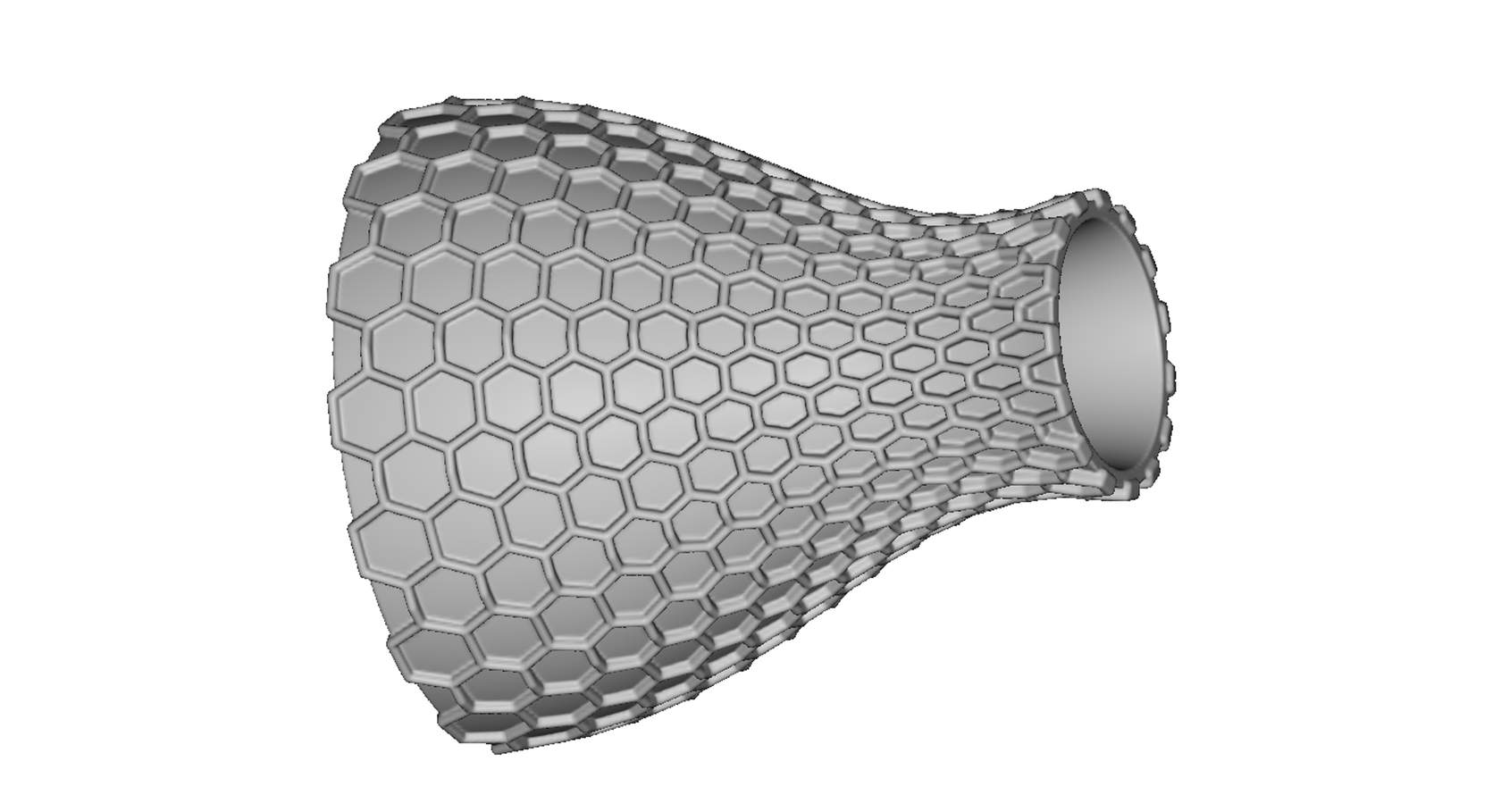

Now that you have learned how to create conformal ribbing in nTop try this optional test problem by reviewing the answer in the following lesson. Add a conformal ribbing to the part provided below. The height and beam thickness of the ribbing should be 3 mm, and the unit cell should be a hexagonal honeycomb with U, V,and W divisions of 12x15x1.
Estimated Time to Complete: 15 minutes  Example File: 311_5_Starter — Conformal Ribbing Test Problem.ntop Report File Issue This file was last updated in nTop 5.13.2
