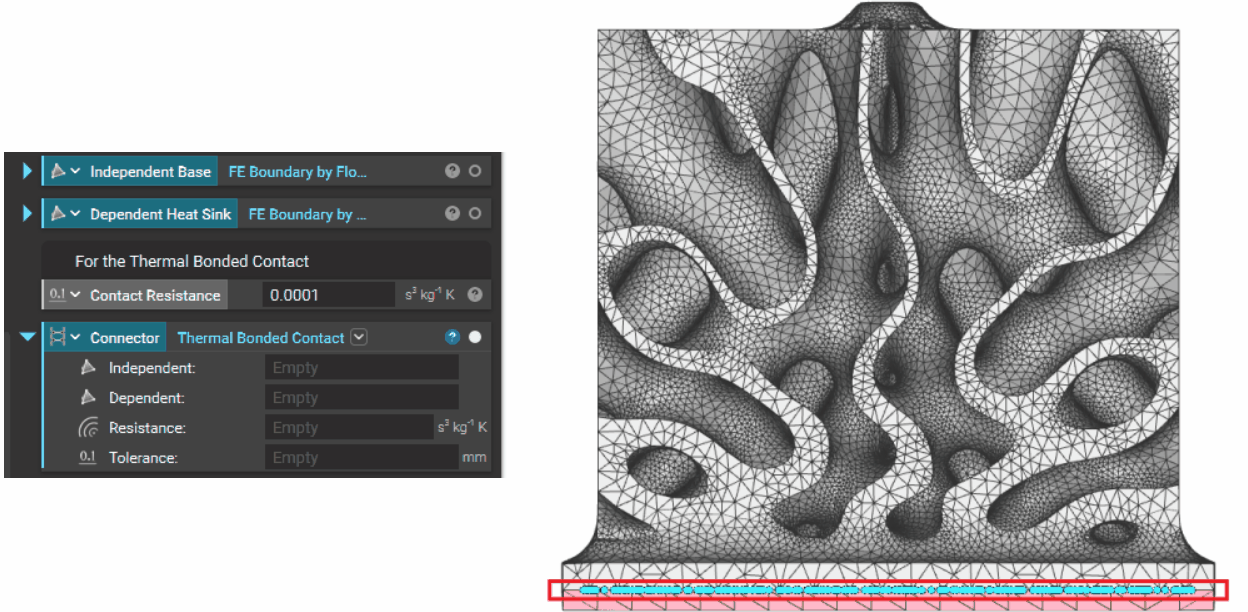

Example: Creating a Thermal Bonded Contact

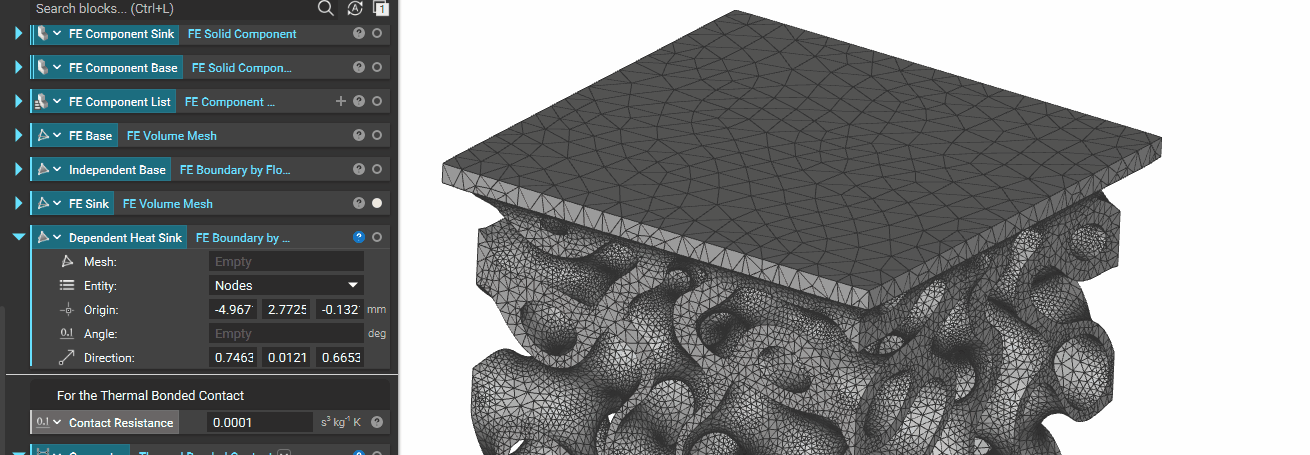

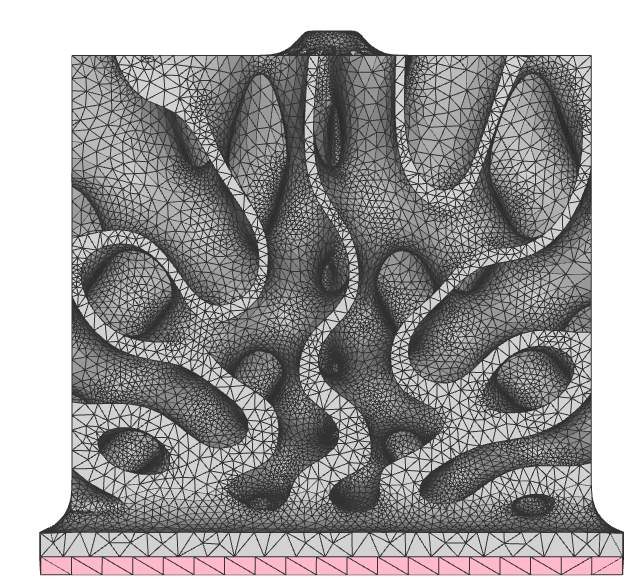

The Heat Sink FE Model below is made of two FE Components: the Heat Sink (gray) and the Base (red). It is assumed that the Base is the Independent mesh, while the Heat Sink is the Dependent mesh.
